Item description

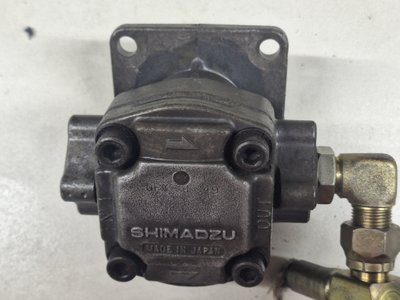

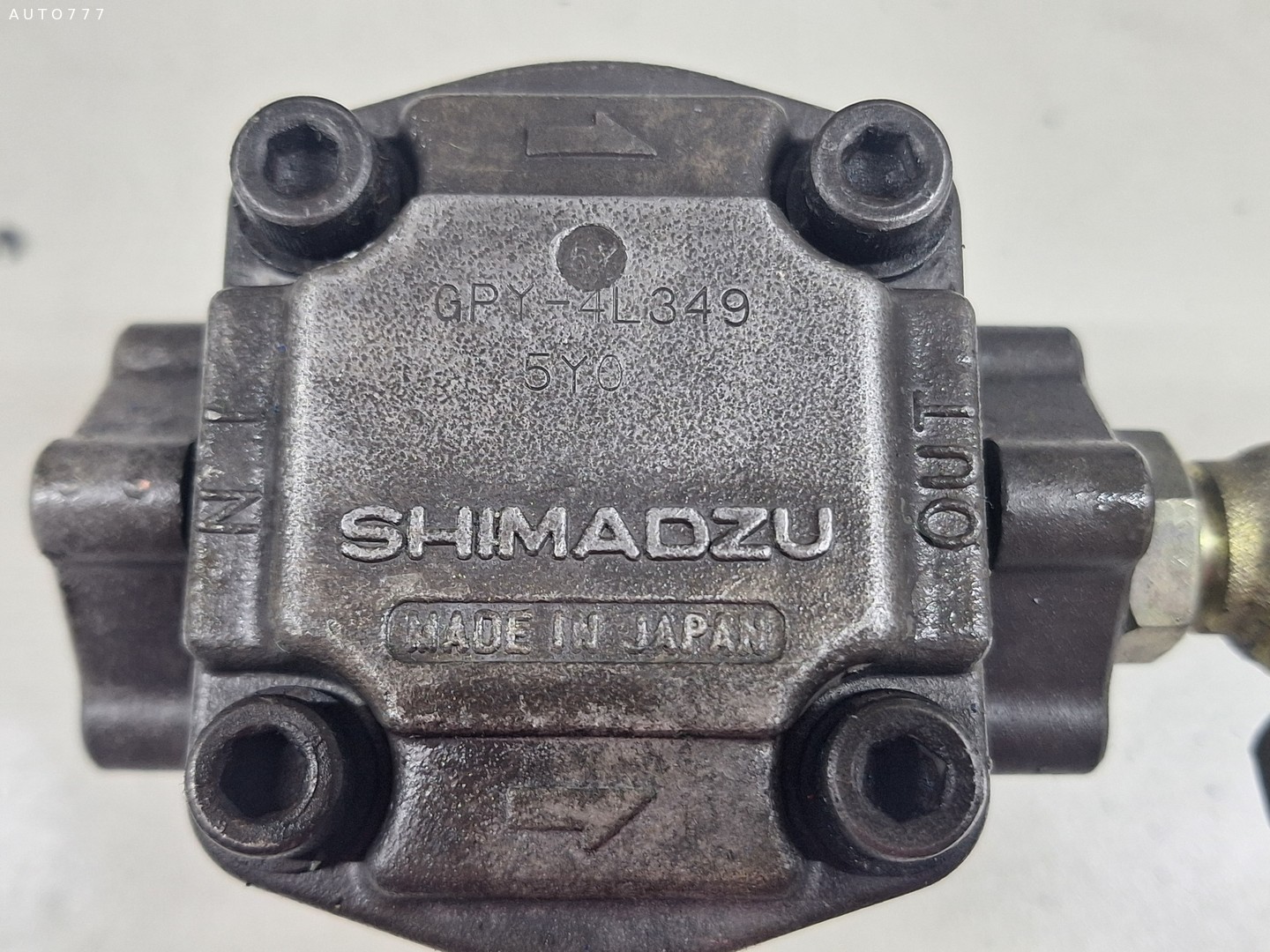

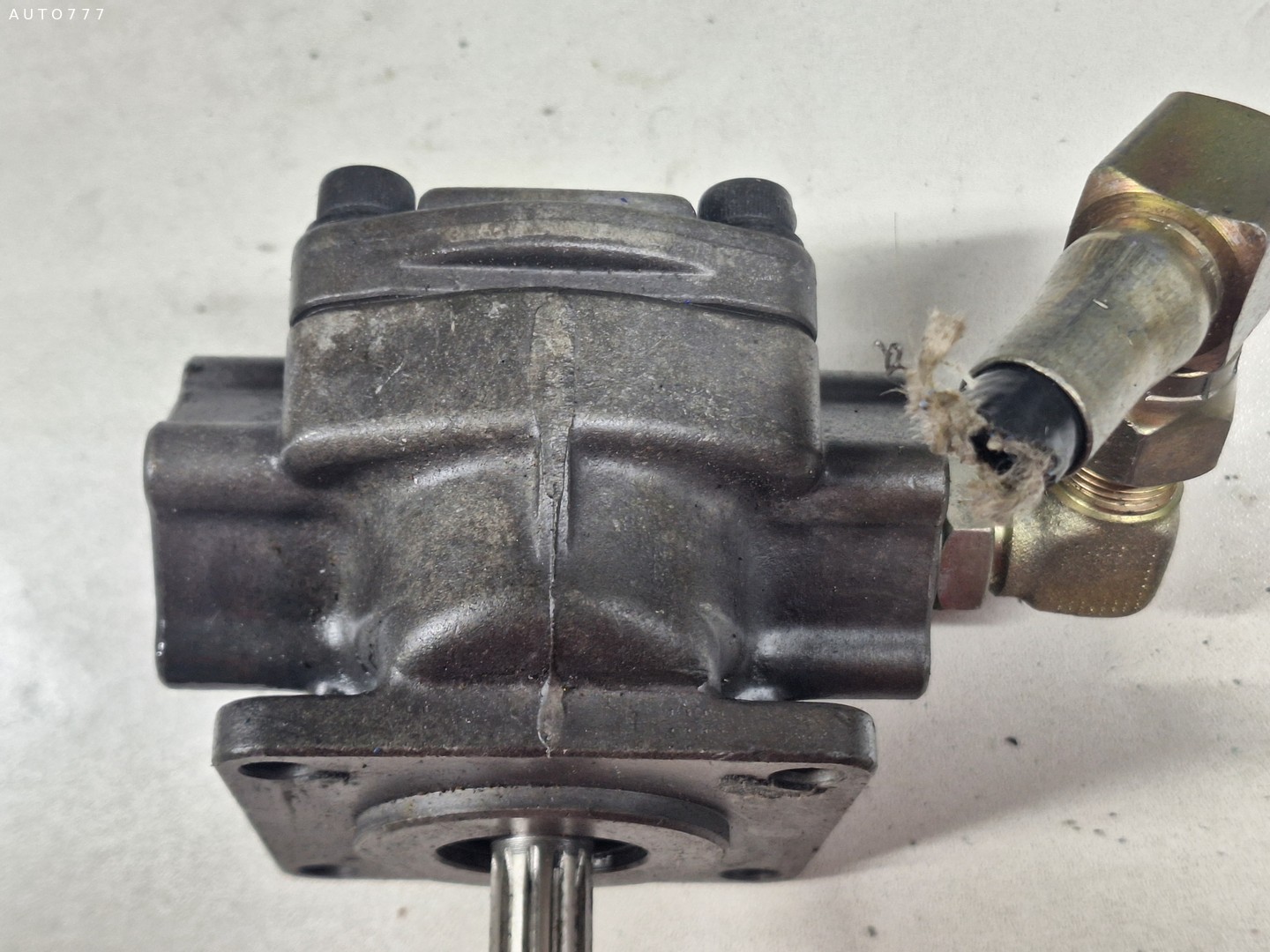

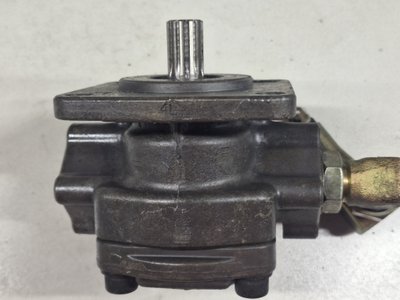

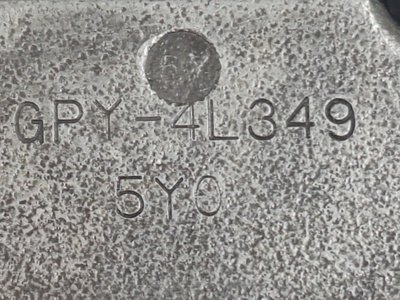

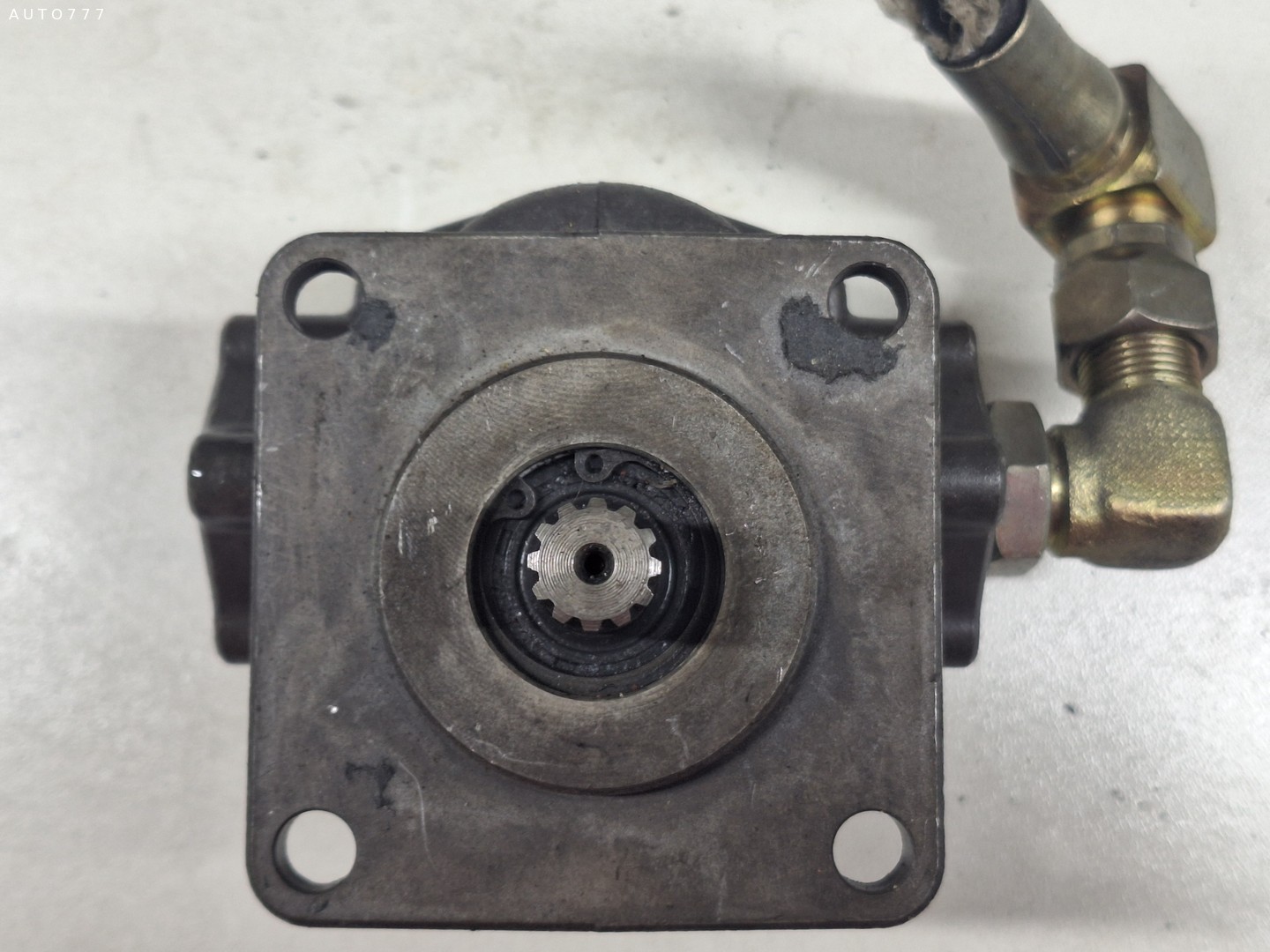

The SHIMADZU GPY-4L349 hydraulic gear pump is a Japanese-made pump designed for the hydraulic systems of specialized machinery and industrial equipment. It is intended for supplying pressurized hydraulic fluid and for operation in systems requiring high efficiency and reliability. Specifications Manufacturer: SHIMADZU, Japan Model: GPY-4L349 Series: GPY Shaft: 12 splines Shaft diameter: 13.5 mm Type: Hydraulic gear pump Housing material: Aluminum alloy Displacement (GPY-4): Approx. 4.0 cm³/rev (12 L/min) Nominal operating pressure (series): Approx. 20.6 MPa (206 bar) Maximum peak pressure (series): Up to 22.6–25 MPa (226–250 bar), depending on the specific version Rotational speed range (series): 500–3000 rpm Gear material: Alloy steel
